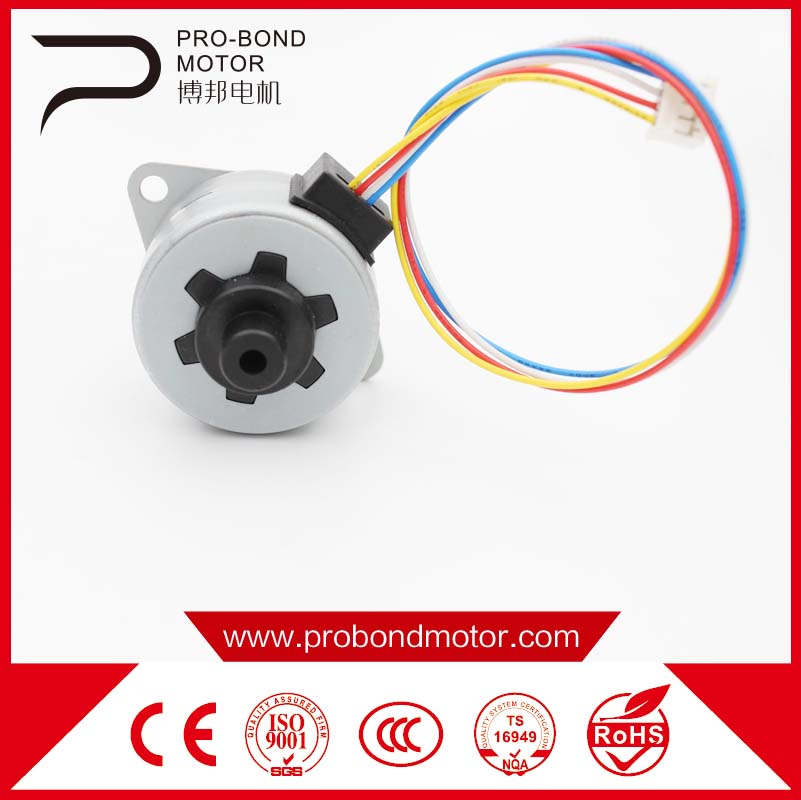

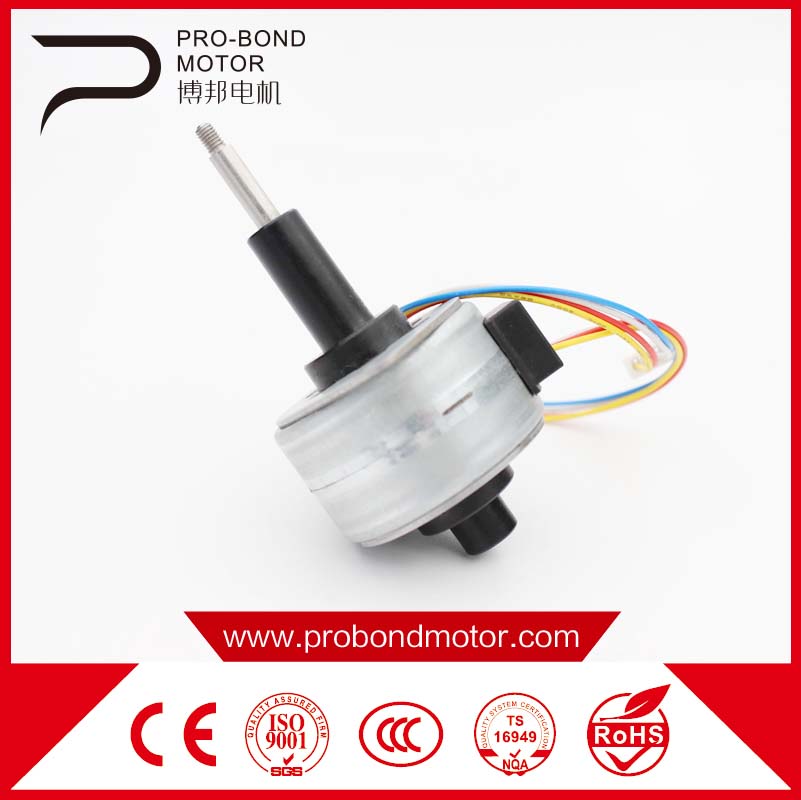

| 35BYZ Linear Motor | ||||||
| Basic Information | ||||||
| Item | Data | |||||
| Tem. Rise | 50K max | |||||
| Working Tem. | (-20℃~+80℃) | |||||
| Insulation Resistance | 100MΩ min 500VDC | |||||
| Surge Test Level | 500VAC for 1min | |||||
| Insulation Class | E | |||||
| Weight | 80g | |||||
| PN | Step Angle | Voltage | Phase | Current | Resistance | Inductance | Push Force | Start Frequency | Rotate Frequency | Push Distance | Step Length |
| （°） | V DC | mA | Ω | mH | g(200pps) | pps | pps | mm | mm | ||
| 35BYZ-20 | 15 | 12 | 2 | ≤250 | 53 | 43 | ≥5 | ≥500 | ≥600 | 20 | 0.0417 |
| 15 | 12 | 2 | ≤350 | 30 | 22 | ≥5 | ≥500 | ≥600 | 20 | 0.0417 | |
| 15 | 12 | 2 | ≤150 | 85 | 65 | ≥5 | ≥500 | ≥600 | 20 | 0.0417 | |
| 15 | 5 | 2 | ≤300 | 22 | 16 | ≥5 | ≥500 | ≥600 | 20 | 0.0417 | |
| 7.5 | 12 | 4 | ≤250 | 53 | 43 | ≥5 | ≥500 | ≥600 | 20 | 0.02085 | |
| 7.5 | 12 | 4 | ≤350 | 30 | 22 | ≥5 | ≥500 | ≥600 | 20 | 0.02085 | |
| 7.5 | 12 | 4 | ≤150 | 85 | 65 | ≥5 | ≥500 | ≥600 | 20 | 0.02085 | |
| 7.5 | 5 | 4 | ≤300 | 22 | 16 | ≥5 | ≥500 | ≥600 | 20 | 0.02085 |
