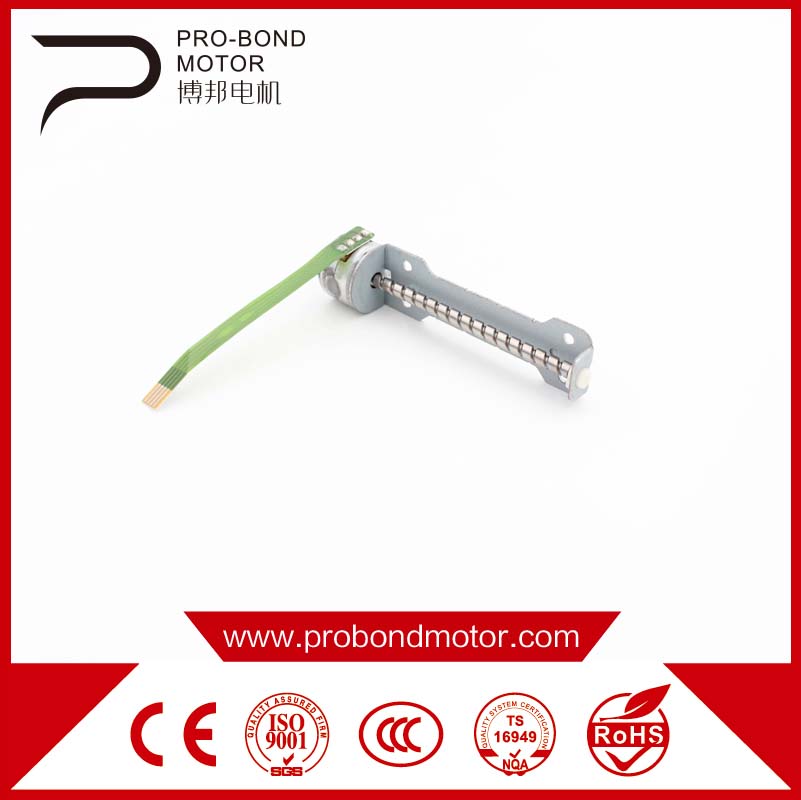

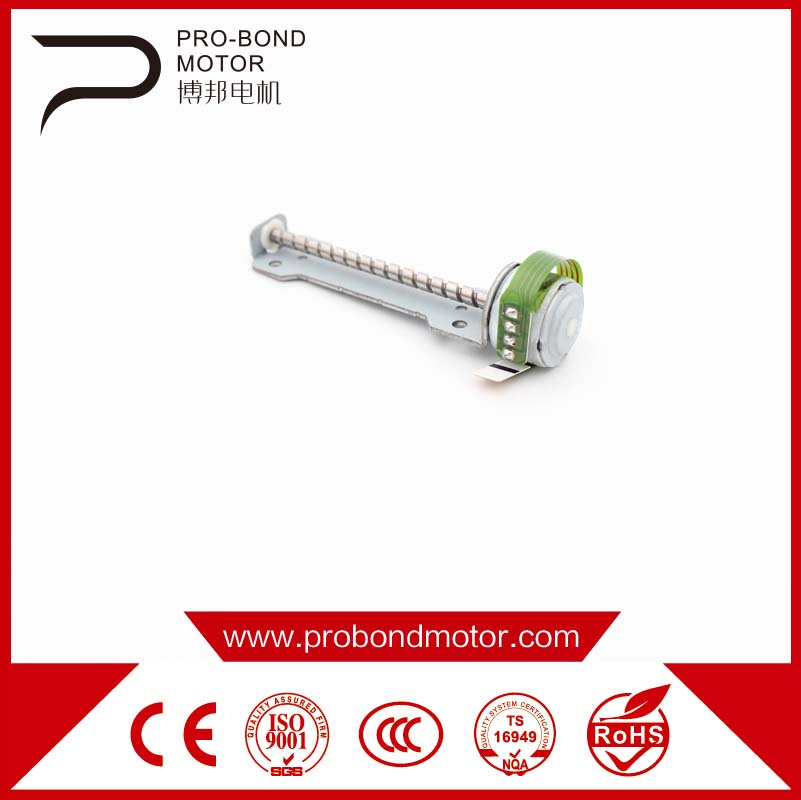

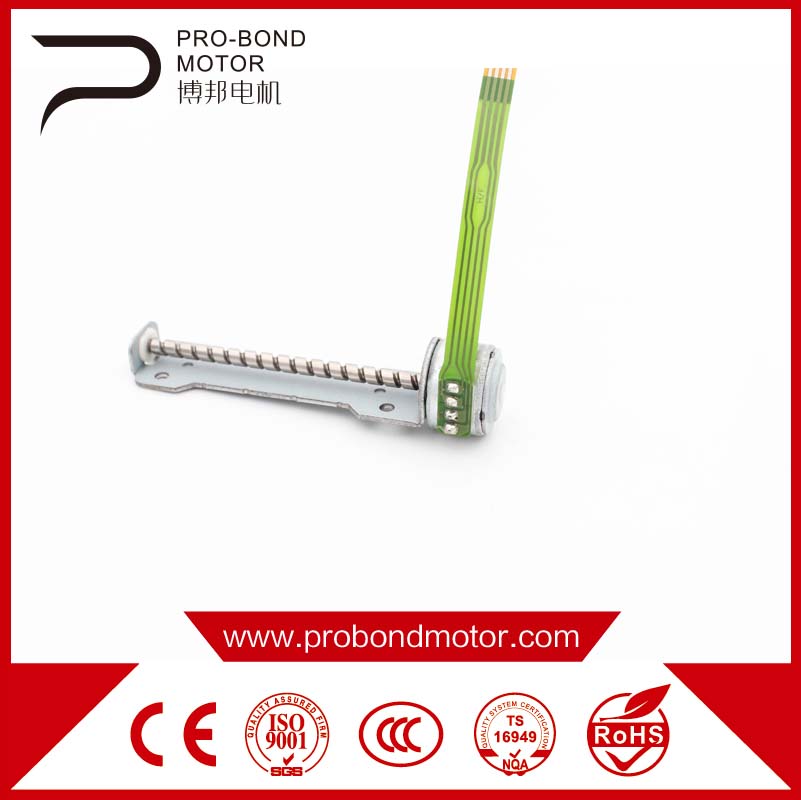

| 15BYZ Linear Motor | ||||||
| Basic Information | ||||||
| Item | Data | |||||
| Tem. Rise | 50K max | |||||
| Working Tem. | (-20℃~+80℃) | |||||
| Insulation Resistance | 100MΩ min 500VDC | |||||
| Surge Test Level | 500VAC for 1min | |||||
| Insulation Class | E | |||||
| Weight | 60g | |||||
| Specification | |||||||||||
| PN | Step Angle | Voltage | Phase | Current | Resistance | Inductance | Push Force | Start Frequency | Rotate Frequency | Push Distance | Step Length |
| （°） | V DC | mA | Ω | mH | g(200pps) | pps | pps | mm | mm | ||
| 15BYZ-40 | 18 | 5 | 2 | ≤700 | 10 | 15 | ≥50 | ≥500 | ≥600 | 40 | 0.15 |
