Description

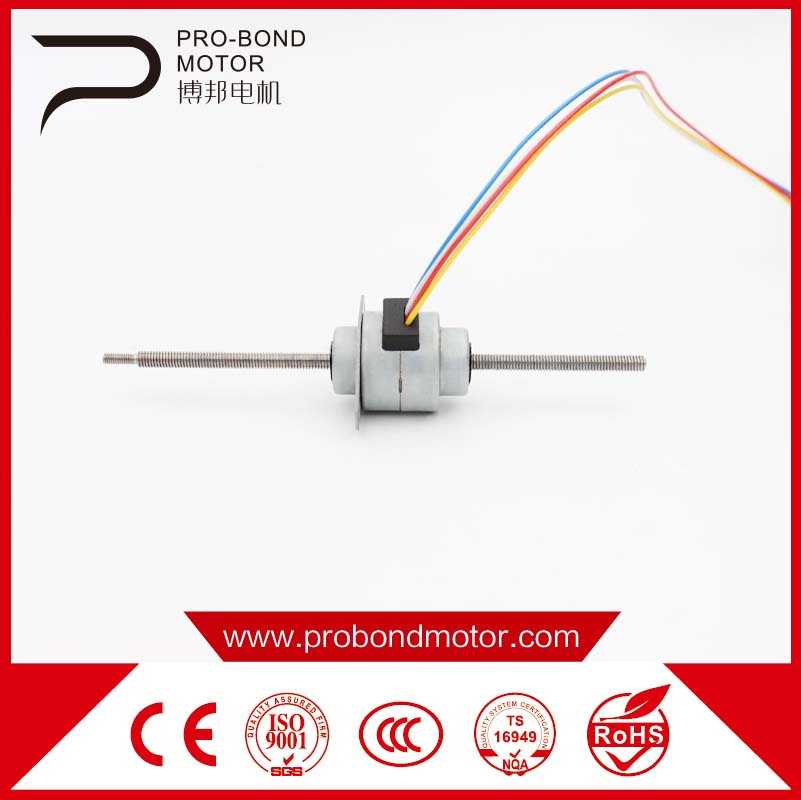

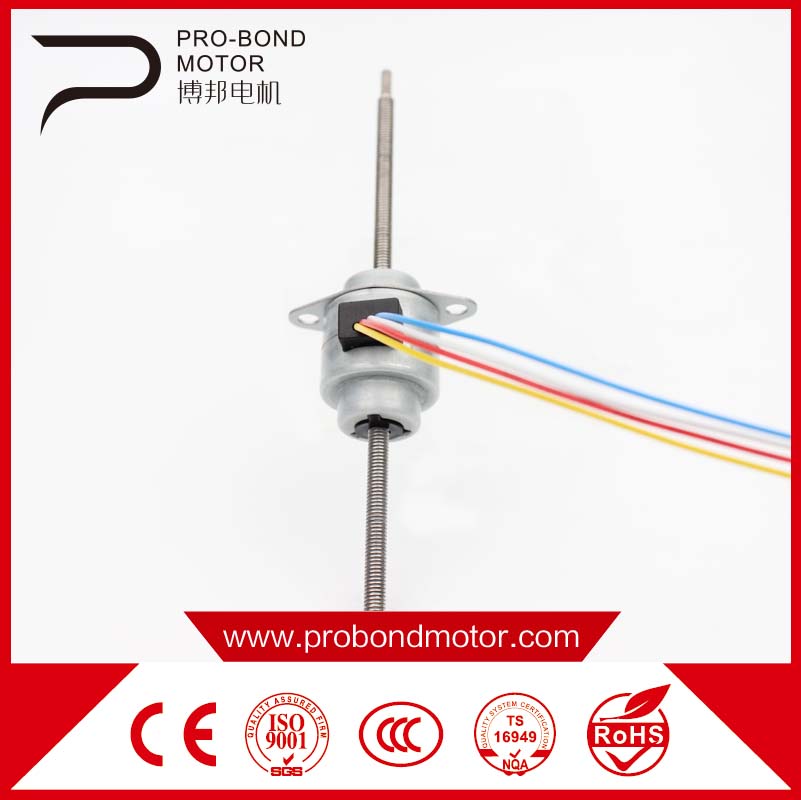

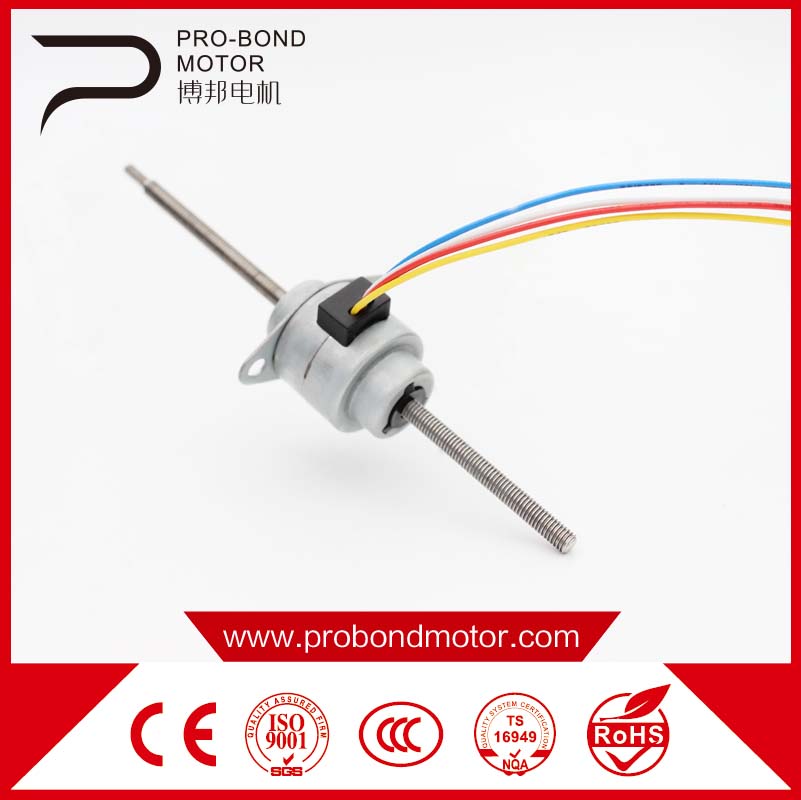

| 20BYZ-G Linear Motor | ||||||
| Basic Information | ||||||
| Item | Data | |||||
| Tem. Rise | 50K max | |||||
| Working Tem. | (-20℃~+80℃) | |||||
| Insulation Resistance | 100MΩ min 500VDC | |||||
| Surge Test Level | 500VAC for 1min | |||||
| Insulation Class | E | |||||
| Weight | 60g | |||||
| Specification | |||||||||||
| PN | Step Angle | Voltage | Phase | Current | Resistance | Inductance | Push Force | Start Frequency | Rotate Frequency | Push Distance | Step Length |
| （°） | V DC | mA | Ω | mH | g(200pps) | pps | pps | mm | mm | ||
| 20BYZ-G | 15 | 12 | 2 | ≤140 | 85 | 38 | ≥1 | ≥500 | ≥600 | 45 | 0.025 |
| 15 | 12 | 2 | ≤250 | 50 | 35 | ≥1 | ≥500 | ≥600 | 45 | 0.025 | |
| 15 | 12 | 2 | ≤300 | 30 | 17 | ≥1 | ≥500 | ≥600 | 45 | 0.025 | |
| 15 | 5 | 2 | ≤350 | 15 | 10 | ≥1 | ≥500 | ≥600 | 45 | 0.025 | |
| 7.5 | 12 | 4 | ≤140 | 85 | 38 | ≥1 | ≥500 | ≥600 | 45 | 0.013 | |
| 7.5 | 12 | 4 | ≤250 | 50 | 35 | ≥1 | ≥500 | ≥600 | 45 | 0.013 | |
| 7.5 | 12 | 4 | ≤300 | 30 | 17 | ≥1 | ≥500 | ≥600 | 45 | 0.013 | |
| 7.5 | 5 | 4 | ≤350 | 15 | 10 | ≥1 | ≥500 | ≥600 | 45 | 0.013 | |
